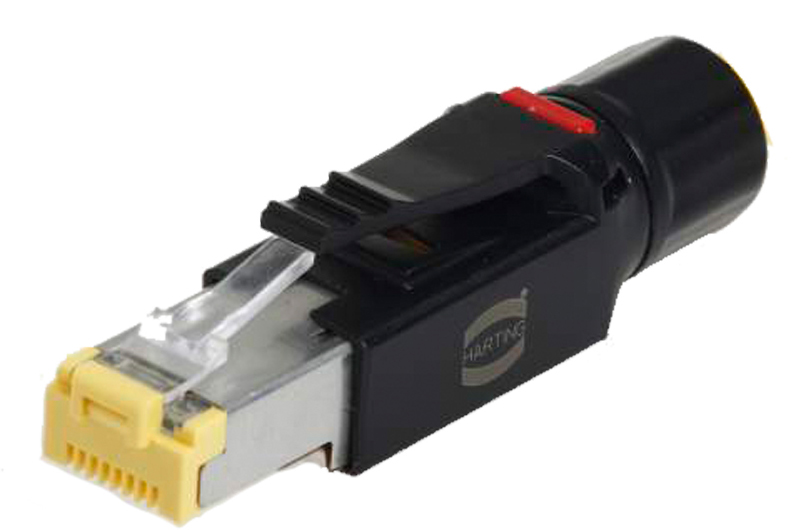

product description
Category: Connector
Series: HARTING RJ Industrial®
Element: Cable connector
Specification: Straight
Termination method: IDC termination
Shielding: Fully shielded, 360° shielding contact
Number of contacts: 8
Conductor cross-section: AWG 22 ... AWG 27 solid and stranded
Wire outer diameter: =1.6 mm
Limiting temperature: -40 ... +70 °C
Mating cycles: = 750
Degree of protection acc. to IEC 60529: IP20
Cable diameter: 4.5 ... 9 mm
Transmission characteristics: Cat. 6A Class EA up to 500 MHz
Data rate: 10 Gbit/s, 10 Mbit/s, 100 Mbit/s, 2,5 Gbit/s, 5 Gbit/s, 1 Gbit/s
Material (hood/housing): Polyamide
Colour (hood/housing): bBack
Material flammability class acc. to UL 94: V-0
Specifications: IEC 60603-7 Mating face, EN 50173-1, IEC 11801
UL / CSA: UL 1977 ECBT2.E102079, CSA-C22.2 No. 182.3 ECBT8.E102079
