product description

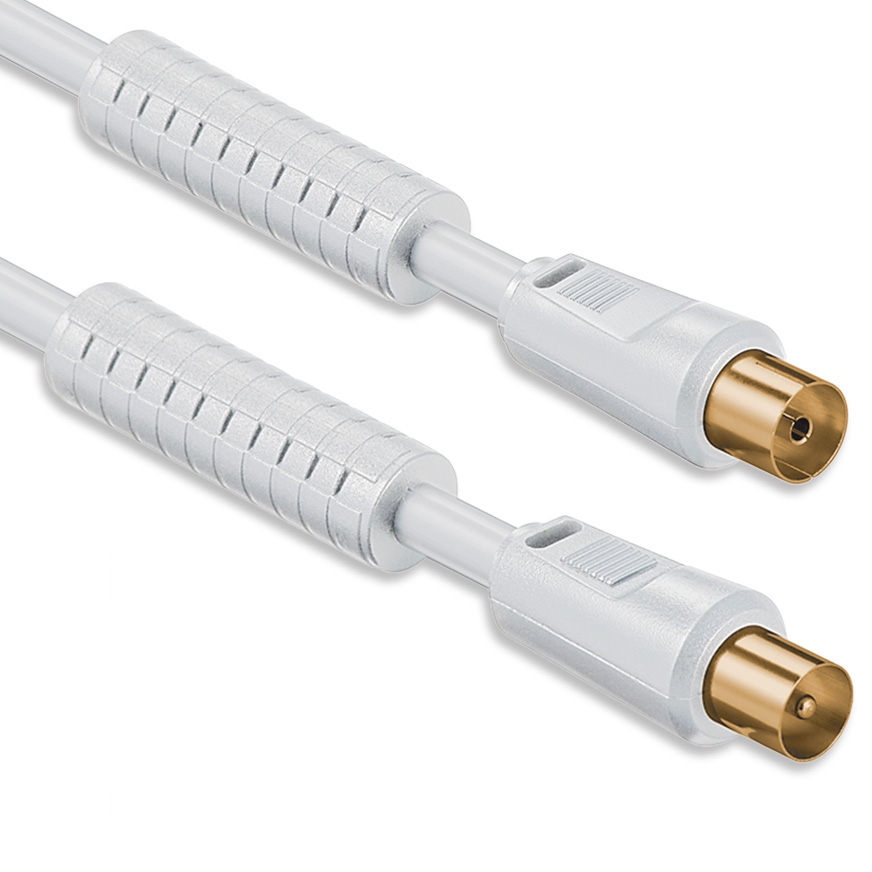

Antenna cable with ferrite, 2x shielded
Gold-plated, coaxial plug > coaxial socket (fully shielded)
High-density double shielding for interference-free signal transmission
Fully shielded, double-molded plug for protection against dust, dirt, and mechanical stress
Gold-plated, highly conductive contacts for lossless transmission and signal quality
With common-mode choke
Technical Data
Connections
Connector type: Coaxial plug
Shielded connector: Yes
Connector 2, type: Coaxial socket
Contact material: Gold-plated
Cable
Cable type: Coaxial cable
Cable jacket diameter (approx.): 5.3 mm
Inner conductor material: CCS
Inner conductor diameter: 0.5 mm
Cable length 10 m
Cable sheath, material PVC
Number of shields 2 x
Type 1, foil shielding (aluminum)
Type 2, braided shielding (aluminum) 112x
Ferrite core
Shielding effectiveness 100 dB
Signal transmission
Characteristic impedance 75 Ω
General
Consumption unit 1 pc. in plastic bag
Color White
Markings CE, WEEE
Gold-plated, coaxial plug > coaxial socket (fully shielded)
High-density double shielding for interference-free signal transmission
Fully shielded, double-molded plug for protection against dust, dirt, and mechanical stress
Gold-plated, highly conductive contacts for lossless transmission and signal quality
With common-mode choke
Technical Data
Connections
Connector type: Coaxial plug
Shielded connector: Yes
Connector 2, type: Coaxial socket
Contact material: Gold-plated
Cable
Cable type: Coaxial cable
Cable jacket diameter (approx.): 5.3 mm
Inner conductor material: CCS
Inner conductor diameter: 0.5 mm
Cable length 10 m
Cable sheath, material PVC
Number of shields 2 x
Type 1, foil shielding (aluminum)
Type 2, braided shielding (aluminum) 112x
Ferrite core
Shielding effectiveness 100 dB
Signal transmission
Characteristic impedance 75 Ω
General
Consumption unit 1 pc. in plastic bag
Color White
Markings CE, WEEE
