product description

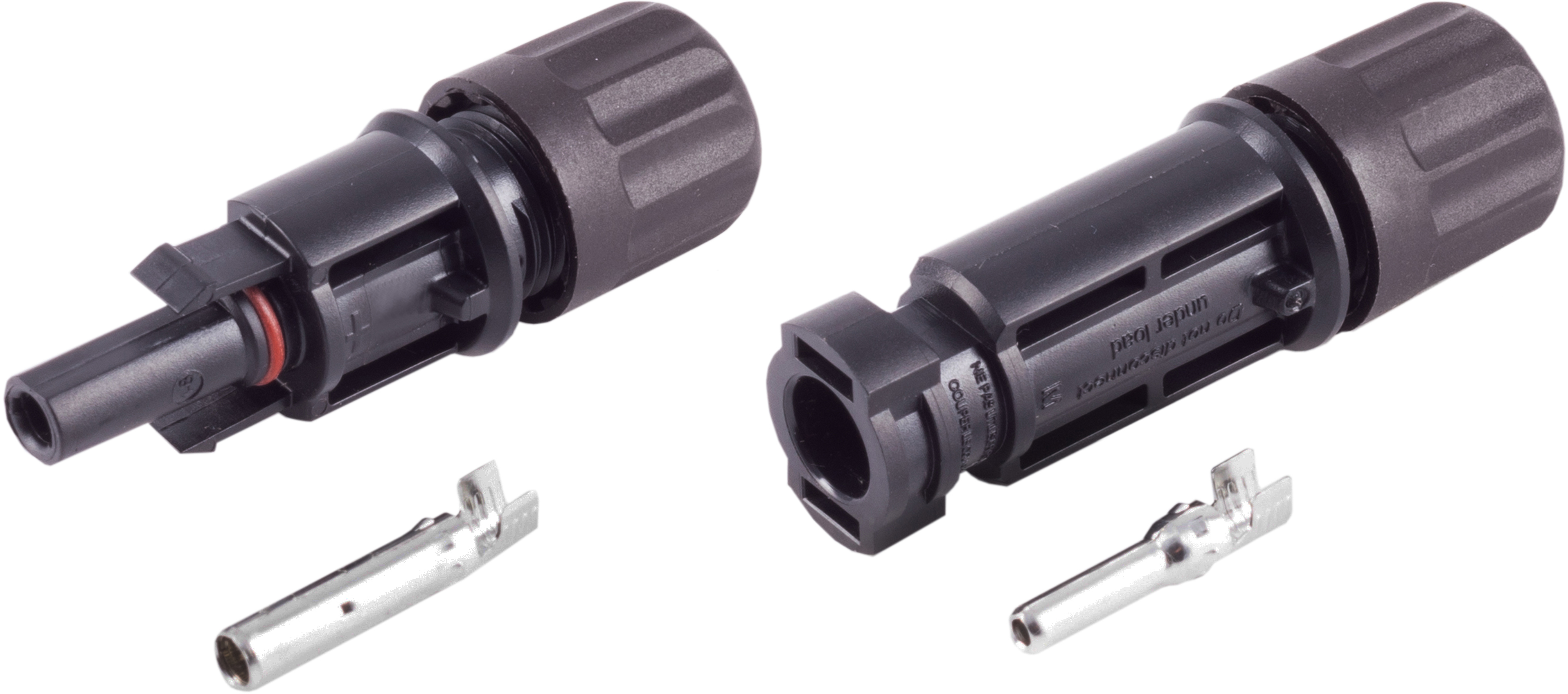

Photovoltaic connector for assembling your own solar cables.
The PV4, also known by the brand name MC4 (Multi Contact), are the
standard connectors for photovoltaic systems.
They are suitable for serial as well as parallel cabling and can be used for
building-integrated and for detached solar systems.
The connectors consist of a housing that is protected against water and dust according to IP68
(plugged), and a metal pin that is crimped onto the cable and makes the contact.
The connectors are certified according to IEC 62852 so that safety and quality can be guaranteed.
· Type of connection: plug + jack, set
· Plug connection: Ø 4mm
· Contact material: tin-plated copper
· Type of contact: pin plug + pin jack, single contact
· Contact manufacturing process: lathed
· Connectable conductor cross-section: 2.5mm², 4mm², 6mm²
· Mounting type: crimping
· Contact system: NEC locking type
· Insulation material: PPO
· Cable OD range: Ø 5.3mm - 7.65mm
· Locking system: Snap-in
· Overvoltage category: CAT II
· Pollution degree: 2
· Protection class: 2
· Degree of protection (plugged): IP68, 1m / 1h
· Flame class: UL94 V-0
· Standards:
IEC 62852:2014, IEC 62852:2014/AMD1:2020,
EN 62852:2015/11:2020
· Rated voltage: 1500 volts DC
· Test voltage: 6 kV (50 Hz, 1 min.)
· Contact resistance: = 0.25 mOhm
· Rated current (IEC 62852 at 85 °C):
2.5mm² (14AWG) 25 A, 4.0mm² (12AWG) 35 A, 6.0mm² (10AWG) 40 A
· Rated impulse voltage: 16 kV
· Ambient temperature: -40 °C to +90 °C
· Color: black
Info: use only one manufacturer of connectors for your PV project.
Package Contents:
1x PV4 connector, plug, 1x PV4 connector, jack
1x pin plug for PV4 plug, 1x pin jack for PV4 jack
The PV4, also known by the brand name MC4 (Multi Contact), are the
standard connectors for photovoltaic systems.
They are suitable for serial as well as parallel cabling and can be used for
building-integrated and for detached solar systems.
The connectors consist of a housing that is protected against water and dust according to IP68
(plugged), and a metal pin that is crimped onto the cable and makes the contact.
The connectors are certified according to IEC 62852 so that safety and quality can be guaranteed.
· Type of connection: plug + jack, set
· Plug connection: Ø 4mm
· Contact material: tin-plated copper
· Type of contact: pin plug + pin jack, single contact
· Contact manufacturing process: lathed
· Connectable conductor cross-section: 2.5mm², 4mm², 6mm²
· Mounting type: crimping
· Contact system: NEC locking type
· Insulation material: PPO
· Cable OD range: Ø 5.3mm - 7.65mm
· Locking system: Snap-in
· Overvoltage category: CAT II
· Pollution degree: 2
· Protection class: 2
· Degree of protection (plugged): IP68, 1m / 1h
· Flame class: UL94 V-0
· Standards:
IEC 62852:2014, IEC 62852:2014/AMD1:2020,
EN 62852:2015/11:2020
· Rated voltage: 1500 volts DC
· Test voltage: 6 kV (50 Hz, 1 min.)
· Contact resistance: = 0.25 mOhm
· Rated current (IEC 62852 at 85 °C):
2.5mm² (14AWG) 25 A, 4.0mm² (12AWG) 35 A, 6.0mm² (10AWG) 40 A
· Rated impulse voltage: 16 kV
· Ambient temperature: -40 °C to +90 °C
· Color: black
Info: use only one manufacturer of connectors for your PV project.
Package Contents:
1x PV4 connector, plug, 1x PV4 connector, jack
1x pin plug for PV4 plug, 1x pin jack for PV4 jack
